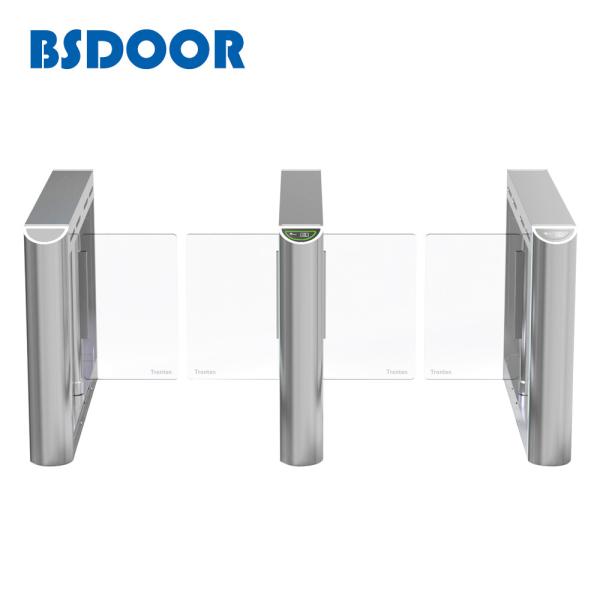

Face Recognition Terminal Bar Code RFID Reader Pedestrian Security Swing Barrier Turnstile Gate
walkways and other places.
I. Standard parameters:
1. Material: stainless steel 304 + tempered glass + acrylic
2. Accessories: LED light board + acrylic swing arm + anti-collision movement +
tempered glass partition + rolling bearing4. Channel width: 600-900mm (customizable) Standard channel 600mm
5. Material structure: 304 stainless steel, tempered glass, acrylic
6. Material 304 stainless steel, outer box 1.2mm -1.5mm
7.Passing speed 35-45 people / minute
8. Communication interface: RS232 RS485
9. Opening time: 0.2s
10. Working temperature: -25 ° C ~ 70 ° C
11. Gate opening method: IC card, ID card, barcode card, ID card,
12. Drive motor: DC brushless 24V
13. Traffic opening method:
14. Infrared anti-pinch, illegal intrusion infrared alarm (imported infrared)
15. Encoder limit, clutch anti-collision
16. Noise floor
17. Life: 18 million times
18. Power: 60 -90w
19. Protection level: IP45 or above
20.The edge of the box adopts the planing process to make the assembly gap
smaller.
21. Working environment: indoor and outdoor (outdoor canopy)
| Dimension | 1200*185*980mm |
| Case Material | SS304 stainless steel,tempered glass,acrylic |
| Pass width | 1200mm(<1200mm can be customized) |
| Material thickness | 1.2mm+1.0mm |
| Mechanism | DC 24V Brushless motor |
| Movement structure | first-grade reduction movement |
| Motherboard | One-driving-two |
| Passage direction | Single directional / Bi-directional |
| Passing rate/NO | 35-40persons/min |
| Passing rate/NC | 20-30persons/min |
| Opening method | ID / IC card reader, infrared sensor, exit button, etc. |
| Communication interface | Dry contact |
| Protection function | electromechanical anti-collision, infrared anti-pinch, illegal intrusion infrared alarm |
| MCBF | ≥5million times |
| Infrared sensor | 4 pairs |
| Power | 40-70w |
| Working temperature | '-20ºC~75ºC |
Function:
(1) Automatic homing function: After the passage process is completed, the
pendulum automatically returns to the initial blocking position.
(2) Power-off and opening function: When the power is cut off, the system will
automatically unlock the pendulum, and it can be manually pushed into the open
state (there is no battery installed inside, so manual operation is required after
power off), which is convenient for evacuation of the crowd and meets fire
protection requirements.
(3) Anti-illegal break-in function: When the card is invalid, there is no card
swiping or the traffic is forbidden, forcibly pushing the pendulum will be
regarded as illegal break-in, and the system will automatically alarm and lock
the pendulum.
(4) Anti-reverse passage function: When the pendulum has been swinging at a
certain angle during the passage, a strong reverse pulling of the pendulum will
be considered as reverse traffic, and the system will automatically alarm, and at
the same time, lock the pendulum and stop the action.
(5) Intelligent linkage alarm: including alarms such as illegal break-in, reverse
traffic, etc., which can be linked with other alarm monitoring equipment, and
can be in the form of sound and light. If a flash alarm is required, alight-emitting alarm needs to be added to the casing.
(6) Anti-pinching and anti-collision function:
Infrared anti-pinching: Install multiple pairs of photoelectric switches in the
area near the pendulum movement (anti-pinching zone). Once a person or object
is detected in the anti-pinching zone, the pendulum automatically stops moving;
The pendulum continues to move.
(7) Anti-collision function: When the brake pendulum is locked, it can withstand
the impact force in a safe range. When the brake pendulum is out of the safe
range, it can be slowly pushed to protect the movement and pedestrians, and
then reset automatically.
(8) Passing instruction function: Install an LED indicating board at a conspicuous place on the housing frame to remind pedestrians the passing state of the gate.
Third, customizable extended functions:
1.Counting and alarm functions;
2. The length of the chassis can be customized according to customers, the
shortest is 1.2 meters, the material of the swing arm is: transparent acrylic, the
colors are: the colors can be customized separately 3. Case material is 304, other materials can also be customized
4.Remote control switch
5. Dynamic integrated face recognition
6. Can add emergency escape function, in the case of special emergency, start by
remote button
10. Fingerprint recognition of time attendance
11. QR code pass
