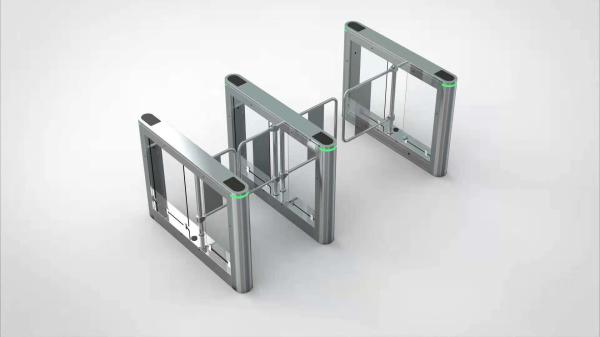

Competitive Price 304 Stainless Steel Swing Barrier Gate Pedestrian Access Control Turnstile
1. Swing Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access.
2. The device housing are formed by inported SUS#304 stainless steel stamping, beautiful and generous shape, anti-rust, durable.
3. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc.
4. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.
Standard functions & features of Swing Turnstiles Gate
1. Infrared sensor to prevent pinch pedestrians.
2. Alarm function, in case of illegal intrusion and reverse intrusion.
3. Anti-breakthrough function. The gate is locked automatically until opening signal received.
4. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
5. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
6. When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
7. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
SPECIFICATIONS:
| Standard model | BS-ST500 |
| Turnstile type | Swing turnstile |
| Cabinet material | 304 stainless steel (standard) |
| 316 stainless steel (optional) |
| Door material | Hollowed stainless steel(standard) |
| Acrylic (optional) |
| Tempered glass (optional) |
| Finish | Stainless steel satin finish |
| Dimension | 1200*280*1000 mm (L*W*H) |
| Passage width | ≤550 mm |
| Weight | 70KG |
| Direction | Single / bidirectional |
| Function | Fail-safe, anti-clamping |
| Power supply | AC 110–220 V, 50/60 Hz |
| Unlock time | 0.2s |
| Flow rate | 35 person/min |
| Working environment | Indoor and outdoor |
| Motor | DC brush motor (standard) |
| DC brushless motor (optional) |
| DC servo motor (optional) |
Adaptive Place
1. Office: Business Building, Government Office, Etc.;
2. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
3. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
4. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
5. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
Standard functions & features of Swing Barrier Gate
| 1) Flow direction guide with high bright led lamp. |
| 2) Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. |
| 3) Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed) |
| 4)The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate. |
| 5)Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs |
| 6) Infrared reset function (Optional:4 pairs or 6 pairs Infrared) |
| 7) The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles) |
| 8) Can manager and long-range control the turnstile directly by managing the computer. |
| 9)Water proof,can used at inside and outside |
| 10) Can be integrated with all kinds of access control systems include ID/IC, barcode, fingerprint, face, iris, etc. |
